Levociraptor Gen2 for BROSE Specialized for LEVO 19-23, KENEVO 20-23 with Bluetooth

Remove the speed restriction for Levo 2019-2023 and Kenevo 2020/2022 with Brose motor, release the full potential of the Specialized Ebike.

Turn your Levo/ Kenevo into a Velociraptor.

The tuning kit manipulates the speed signal without altering the motor's power relative to pedaling speed. This guarantees a smooth motor control without speed limit interruptions. Depending on a tuning kit, some determine when assistance stops, while others remove the restriction entirely for continuous support. However, the achievable speed mostly depends on the eBike model. Achievable speed can be calculated using a simple formula:

Speed = Cadence [rpm] * Wheel circumference [mm] * Front Chainring Teeth / Rear Chainring Teeth * 60 [min/h] / 1.000.000 [mm/km]

After the Tuning kit is installed, your e-bike will be derestricted and you will reach maximum speed! The tuning kit is always active. You do not need to activate it. The Levociraptor connects to your ebike via the TCU and speed calibration within Levociraptor App allows you to retain accuracy of speed and distance. With Levociraptor Gen2 and MasterMind TCU, BLEvo operates exclusively in 'read mode'. This entails that the BLEvo app can solely capture all the riding data, while the Smart Power feature remains unavailable, and configuring the speed limit is not possible.

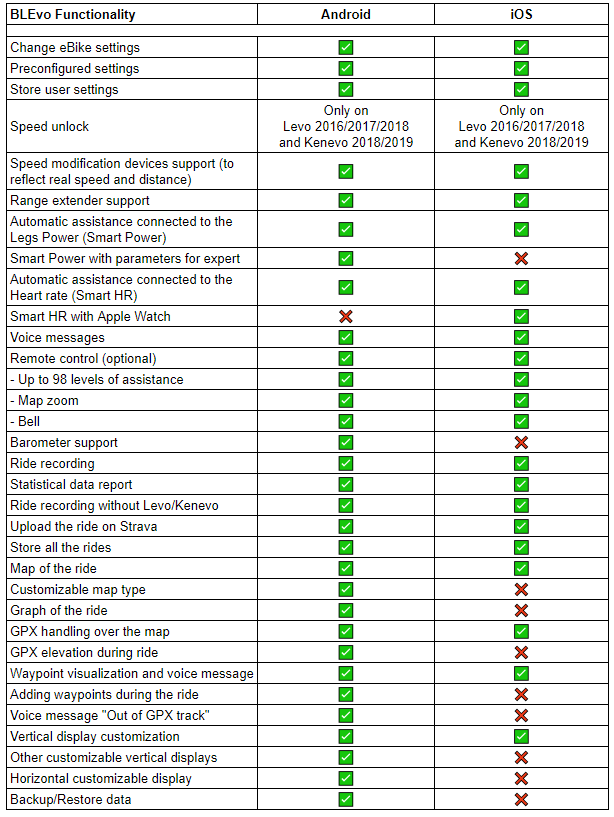

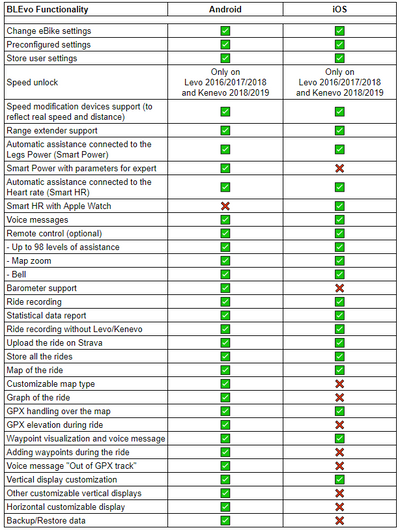

Available features with BLEvo app
- 5 different speed limits selectable via Bluetooth with dedicated free App or BLEvo.
- Barometer* for altitude calculation and Thermometer* for logging ambient temperature.
- Crash detection* with message notification with GPS position.
- Automatic restore of the speed restriction after crash*.
- Firmware updatable via Smartphone.
*Feature available only if the ride is recorded with BLEvo App

Please note that setting 4 is the highest option available for 2022/ 2023 Levo Generation 3.

Setting 5 is the highest option for untested versions of firmware.

12 Month Warranty on Levociraptor Devices.

Easy Installation - Levociraptor Gen2 comes complete with a manual. The installation of the Levociraptor tuning kit is quite simple and can be easily done by technical laymen. Out of sight installation under the TCU inside the frame. Full instructions and easily removed or reset to factory settings.

If you have any questions regarding the setup please do not hesitate in contacting us, we are happy to help.

When you remove the Tuning kit, you need to check the wheel size, if it is smaller then original. Then you need to put Tuning kit back to ebike. Set speed setting of levociraptor on the lowest.
- Ride around for few minutes.
- Turn off the bike.
- Remove the chip
- Reset TCU and on/off bike twice
- Wheel size will be back to factory

Installation Guide:

Compatible with:
- Levo 2019-2023 Brose Specialized motor.
- Kenevo 2020/2022 with Brose Specialized motor.

This tuning kit works with higher speed versions as well!

If you have Brose Specialized Levo or Kenevo eBike 2019-2023, you can choose Levociraptor Gen1

If you have Brose Specialized Levo SL, Vado or Creo eBike, you can choose the Levociratpor Gen1

You can choose Levociraptor Gen2 for BROSE Specialized for Levo SL, Creo SL & Vado SL Gen3 2022 with Bluetooth.

Please note that the operation of this type of modified electric bikes on public roads may be against the law in some countries. The manufacturer takes no responsibility for damages resulting from the use Levociraptor products. Electric bikes equipped with Levociraptor products are not allowed to be used on public roads, cycling paths and public places. Electric bikes equipped with Levociraptor products can be used exclusively on private property and entirely at one’s own risk. The use of Levociraptor may void the warranty of your ebike. We strongly recommend using other safety features and protective gear to prevent injuries in higher speeds.

Warranty does not cover damage resulting from eBike software updates. Remove the tuning kit before updating the software. Check with us first to ensure the kit is compatible with your updated eBike. We cannot guarantee that the kit will function the same after updates. Please exercise caution.
