SpeedBox 3.1 B.Tuning for Yamaha PW-X3 | PW-S2

Smart chip of the third generation with an option to set a speed limit of an e-bike.

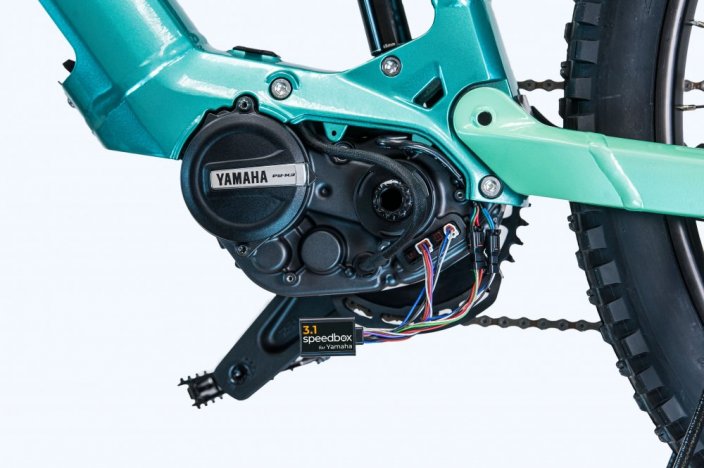

SpeedBox 3.1 tuning chip enables to select speed limit of your own choice. After the chip is installed, your e-bike’s display will show real data, such as maximum and average speeds, daily mileage and cruising range.

The tuning kit manipulates the speed signal without altering the motor's power relative to pedaling speed. This guarantees a smooth motor control without speed limit interruptions. Depending on a tuning kit, some determine when assistance stops, while others remove the restriction entirely for continuous support. However, the achievable speed mostly depends on the eBike model. Achievable speed can be calculated using a simple formula:

Speed = Cadence [rpm] * Wheel circumference [mm] * Front Chainring Teeth / Rear Chainring Teeth * 60 [min/h] / 1.000.000 [mm/km]

The tuning kit can be activated directly on your bike’s display. After pressing the LIGHT button or ↑↓↑↓, a value of 99 km/h (62 mph) is displayed and from now on you will be able to ride at an unlimited speed.

To deactivate the tuning kit, press the LIGHT button or ↑↓↑↓ again. The value of 25 km/h (16 mph) will appear on your display and the speed limit will reset to 25 km/h. Your e-bike will then work the same as before installation of the chip.

You can set the maximum speed of an electric assistance by changing modes three levels down and then three levels up. An actual speed limit will be displayed after that. The maximum speed of an electric assistance can be switched by pressing LIGHT button shortly or by turning the rear wheel 360°. The last displayed limit will be saved after 5 seconds of inactivity.

The tuning kit is compatible with models powered by PW-X3 or PW-S2 Yamaha motors. However, it is not compatible with the following e-bikes: Yamaha MORO, Booster, Booster Easy, Wabash RT, CrossCore RC, and GasGas due to the speed sensor being located on the hub/axle.

If you have Yamaha PW-SE / PW-X / PW-TE / PW-X2 you would need SpeedBox 3.0 for Yamaha PW-SE / PW-X / PW-TE / PW-X2 motors or bluetooth version SpeedBox 3.0 B. Tuning for Yamaha PW-SE / PW-X / PW-TE / PW-X2 motors

If your e-bike is Yamaha 2014-2018 with Yamaha PW, you would need this one - Yamaha PW.

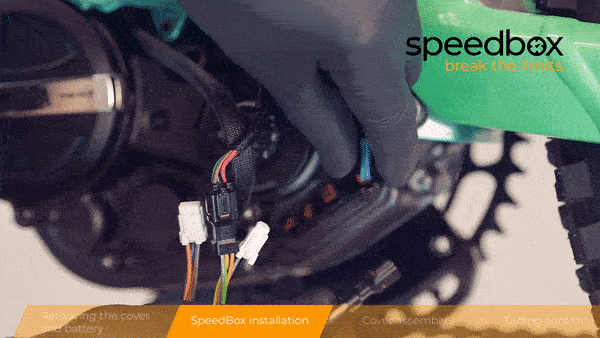

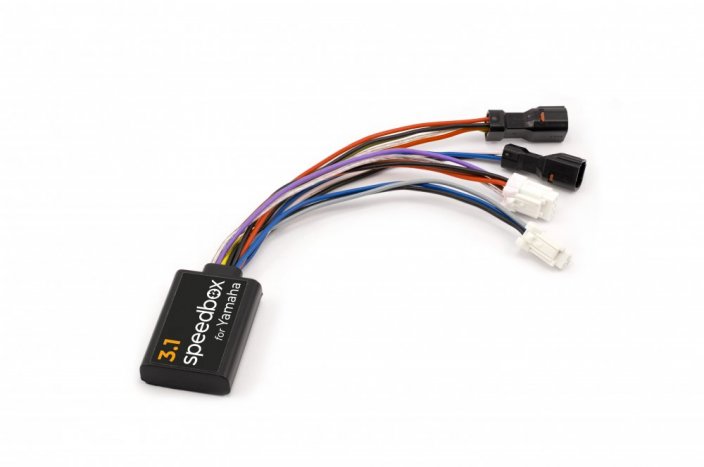

When connecting Tuning Kit to an e-bike you will find connectors colored to make installation very simple. We have prepared detailed instructions and videos to make installation easy for you. Disassembly of our tuning kit is just as easy. If you have any troubles with installation or disassembly, do not hesitate to contact us. If you are planning to install Speedbox on a brand-new bike, make sure you ride it for at least 0.6 miles (1 km) before the tuning kit is activated.

Installation Guide:

Please note that the operation of this type of modified electric bikes on public roads may be against the law in some countries. The manufacturer takes no responsibility for damages resulting from the use SpeedBox products. Electric bikes equipped with SpeedBox products are not allowed to be used on public roads, cycling paths and public places. Electric bikes equipped with SpeedBox products can be used exclusively on private property and entirely at one’s own risk. The use of SpeedBox may void the warranty of your ebike.

We strongly recommend using other safety features and protective gear to prevent injuries in higher speeds.

SpeedBox products are thoroughly tested and we stand by their quality. SpeedBox provides lifetime warranty to all their Products!

Warranty does not cover damage resulting from eBike software updates. Remove the tuning kit before updating the software. Check with us first to ensure the kit is compatible with your updated eBike. We cannot guarantee that the kit will function the same after updates. Please exercise caution. If your Speedbox tuning kit needs updating due to updated eBike software, please contact us at hi@twowheelsempire.com. Preliminary costs are 59€ + shipping costs.
